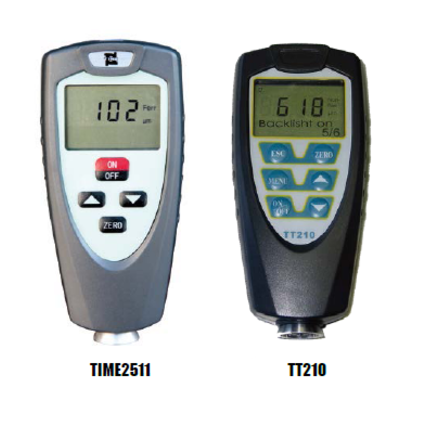

Portable Coating Thickness Gauge TIME®2511/TT210

TIME®2511 is the most economical digital coating thickness gauge that uses magnetic induction method to measure non-magnetic coatings (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminum, chrome etc.) on ferrous substrates (e.g. iron, nickel etc.). This paint thickness meter is ideal for painted surface testing, car paint inspection, coated material testing, and quality control applications. TT210 adopts both magnetic induction (F) and eddy current (N) measuring methods.

Features:

• Integrated probe FN
• Automatic substrate recognition
• Automatic calculation: Mean/Max/Min/No./S.Dev
• Upper-lower limit setting and sound alarm
• Data output RS232 to printer TA220S or PC
• TIME2511 adopts magnetic induction (F) measuring method.
• TT210 adopts two measuring methods: magnetic induction (F) and eddy current (N).
• Single point measurement mode for TIME2511; two measuring modes for TT210: Continuous / Single
• Easy zero point calibration
• TIME2511: 3 adjustable resolutions for different applications
• High speed data collection
• Automatically switch off
• Easy conversion between mm and inch
